Coning Winding Carrier Solutions
We use 100 % virgin raw material with prime grade called pp-cp polypropylene homopolymer and copolymer for getting impact strength of the tube. Also use different combinations of materials like ABS, PC-ABS, Nylon, Glass Filled Nylon etc. considering different types of yarn, package size and its further process, applications and customer’s specific requirement.
These permutations and combinations of material provide high Compressive Strength to the tube making it Long lasting, Durable for multiple times reuse and in turn making it cost effective and cost saving carrier particularly for captive use or self-consumption for integrated process plants.

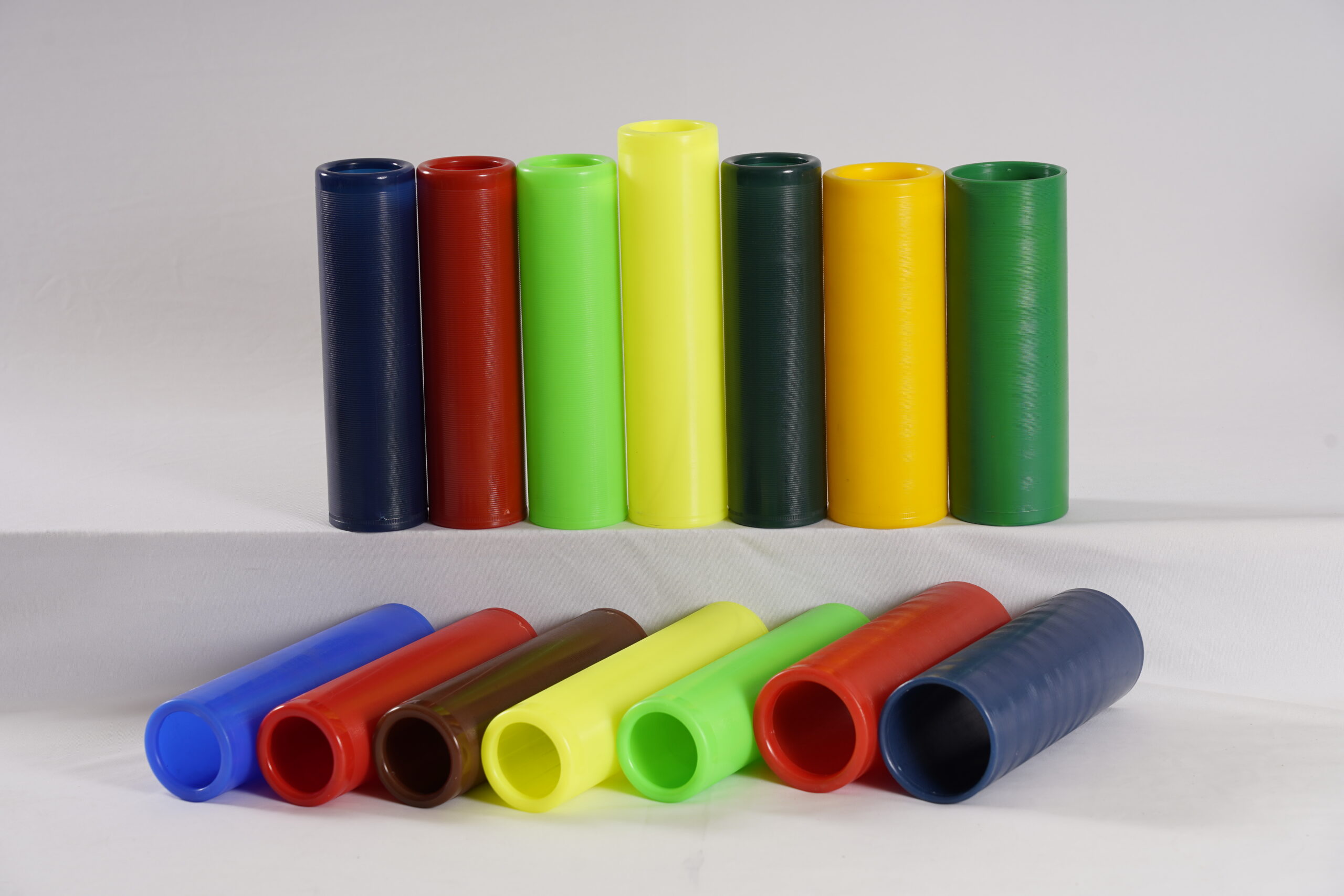

We offer huge range of plastic winding tubes which are also referred as Plastic open end cheese tubes ,Plastic OE winding tubes or plastic coning winding tubes for Assembling, package resizing, rewinding, Final Packaging of yarn.
These plastic tubes also come with additional yarn support features depending upon the applications and further usage. Also Available in different colors to differentiate yarn of different grades and specifications.
Winding Plastic Tube Range
- Inner Diameter Range (mm) :- 73-75
- Outer Diameter Range (mm) :- 80-85
- Length Range (mm) :- 218-250
- Weight Range (gram):- 180- 300
- Additional Features :- knurling, Plain, Ribs
- Plastic tubes Suitable for :- BCF Yarn, PP & Nylon yarn, Multiply yarn, FIBC High Tenacity Yarn
- Application :- Carpet & Rugs, Mattress, Fishnet, Artificial Grass, Industrial Yarn, Technical Textile Yarn
| Cable-Corder Plastic tube / Plastic Winding tube size chart | |||||||||
| Item code | ID (mm) | OD (mm) | Length (mm) | Weight (Grams) | Thickness (mm) | surface | Material | View Detail | |
| CT-01 | 75 | 80 | 280 | 160 | 2.5 | Knurling | PP-CP | View Detail | |
| CT-02 | 73 | 80 | 290 | 220 | 3.5 | Knurling | PP-CP | View Detail | |
| CT-03 | 75.5 | 85 | 285 | 360 | 5 | Plain | ABS | View Detail | |
| CT-04 | 75 | 84 | 280 | 280 | 4.5 | Plain | PP-CP | View Detail | |
| CT-05 | 75 | 84 | 290 | 290 | 4.5 | Plain | PP-CP | View Detail | |
| CT-06 | 73 | 82 | 280 | 300 | 4.5 | Micro Knurling | PP-CP | View Detail | |
| CT-07 | 75 | 84 | 260 | 265 | 4.5 | Plain | PP-CP | View Detail | |
| CT-08 | 73 | 80 | 270 | 170 | 2.5 | Knurling | PP-CP | View Detail | |
| CT-09 | 75 | 84 | 270 | 267 | 4.5 | Knurling | PP-CP | View Detail | |
