Plastic Cheese Winding Carrier Solutions
We use 100 % virgin raw material with prime grade called pp-cp polypropylene homopolymer and copolymer for getting impact strength of the tube. Also use different combinations of materials like ABS, PC-ABS, Nylon, Glass Filled Nylon etc. considering different types of yarn, package size and its further process, applications and customer’s specific requirement.
These permutations and combinations of material provide high Compressive Strength to the tube making it Long lasting, Durable for multiple times reuse and in turn making it cost effective and cost saving carrier particularly for captive use or self-consumption for integrated process plants.
We provide carrier solutions for Spun Polyester yarn, Cotton yarn by offering variety of plastic cheese winding tubes which are also referred as Plastic open end cheese tubes or plastic cheese tubes.

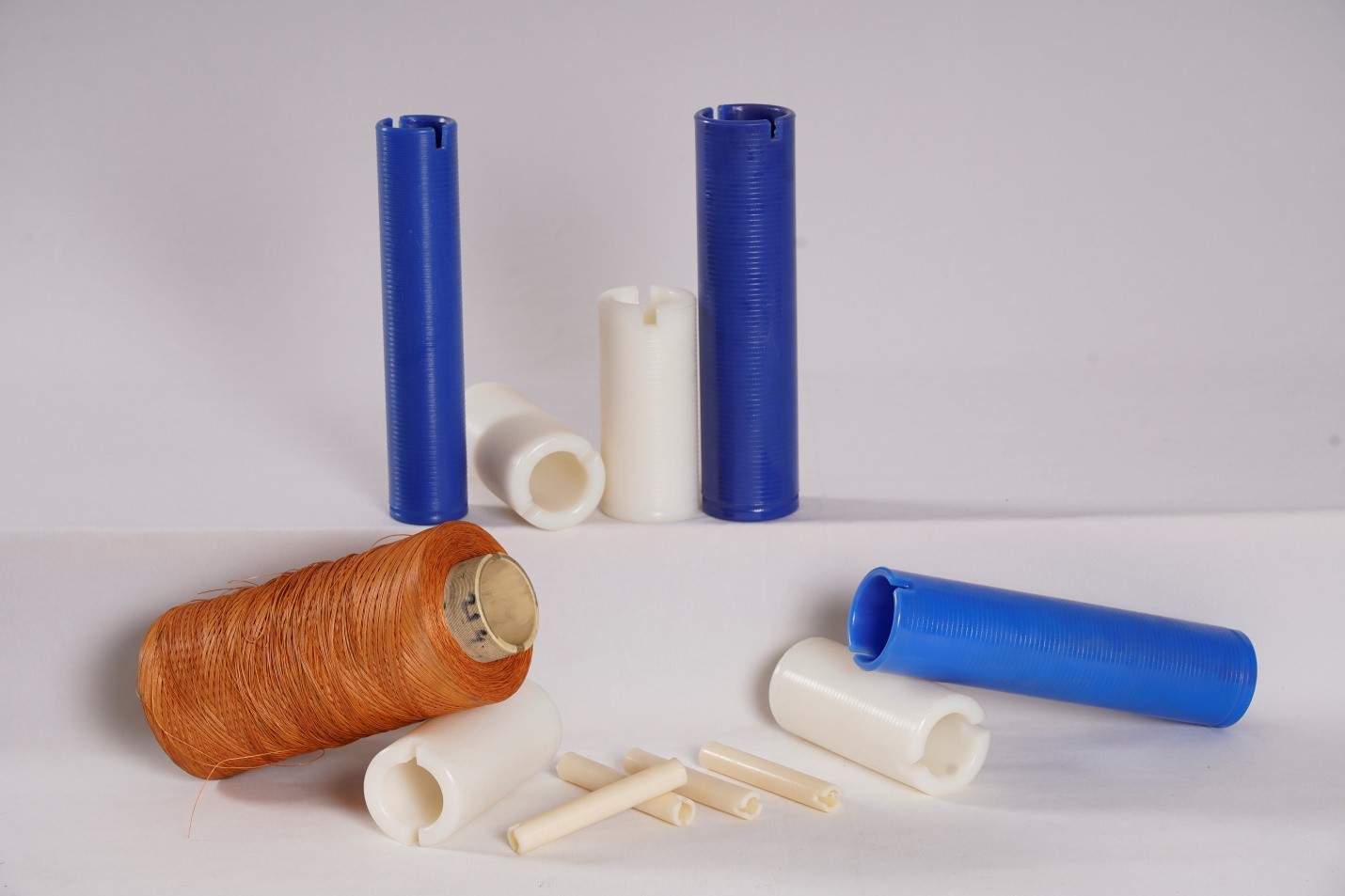

We also manufacture and supply Plastic cheese tube for Industrial yarn often known as Plastic Industrial cheese tubes with special slotted arrangement for specific applications of Belting cord, Nylon Twines, Braiding and other related industrial yarn manufacturing.

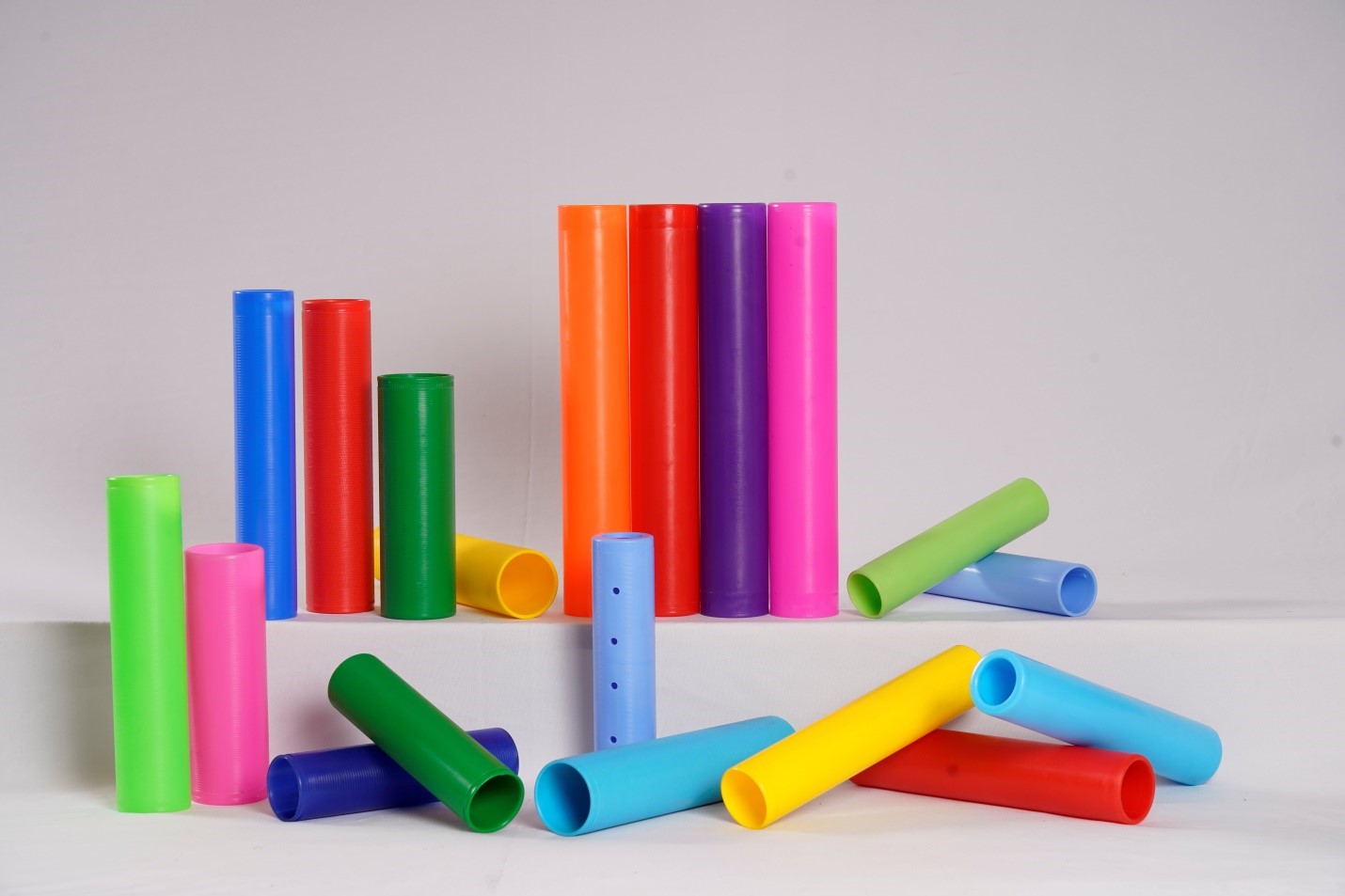

These plastic cheese tubes also come with additional yarn support features depending upon the applications and further usage. Also Available in different colors to differentiate yarn of different grades and specifications.
Cheese Winding Plastic Tube Range
- Inner Diameter Range (mm) :- 32-43
- Outer Diameter Range :- 80-85
- Length Range (mm) :- 170-290
- Weight Range:- 42- 100 Gram
- Additional Features :- knurling, Plain, Ribs
- Plastic Cheese tubes Suitable for :- Spun Polyester, Cotton, Viscose Yarn, Multifilament yarn
- Application :- Embroidery and Weaving
Plastic Industrial Cheese Tubes
- Inner Diameter Range (mm) :-10-45
- Outer Diameter Range (mm) :- 12-54
- Length Range (mm) :- 100-220
- Weight Range:- 10- 193 Gram
- Additional Features :- Bend nose,knurling, Plain, Ribs, Slotted
- Plastic Cheese tube Suitable for :- Industrial Yarn, Nylon yarn, Twine Yarn Uncoated Thread, High Tenacity Yarn
- Application :- FIBC, Non-Woven, Braiding, Cords and Belting, Rubber Hose
| Cable-Corder Plastic tube / Plastic Winding tube size chart | |||||||||
| Item code | ID (mm) | OD (mm) | Length (mm) | Weight (Grams) | Thickness (mm) | surface | Material | View Detail | |
| CT-01 | 75 | 80 | 280 | 160 | 2.5 | Knurling | PP-CP | View Detail | |
| CT-02 | 73 | 80 | 290 | 220 | 3.5 | Knurling | PP-CP | View Detail | |
| CT-03 | 75.5 | 85 | 285 | 360 | 5 | Plain | ABS | View Detail | |
| CT-04 | 75 | 84 | 280 | 280 | 4.5 | Plain | PP-CP | View Detail | |
| CT-05 | 75 | 84 | 290 | 290 | 4.5 | Plain | PP-CP | View Detail | |
| CT-06 | 73 | 82 | 280 | 300 | 4.5 | Micro Knurling | PP-CP | View Detail | |
| CT-07 | 75 | 84 | 260 | 265 | 4.5 | Plain | PP-CP | View Detail | |
| CT-08 | 73 | 80 | 270 | 170 | 2.5 | Knurling | PP-CP | View Detail | |
| CT-09 | 75 | 84 | 270 | 267 | 4.5 | Knurling | PP-CP | View Detail | |
